Nzira yekusarudza Magnet Wire?

Abstract

Magnet wayachinhu chakakosha mumamotor, transformers, inductors, uye huwandu hwakawanda hwemagetsi emagetsi. Nekudaro, vatengi vazhinji vanotarisana nematambudziko anodzokororwa senge kutadza kuvharidzira, kusawirirana conductivity, kupisa, uye kuomerwa nekufananidza waya kutsanangurwa kune chaiyo-yepasirese application. Ichi chinyorwa chinopa yakarongeka uye inoshanda gwara rekusarudza magineti waya, kufunga kwekugadzira, masisitimu ekudzivirira, uye mashandisiro-chaiwo zvinodiwa. Nekunzwisisa zvinhu izvi, mainjiniya, vatengi, uye vanoita sarudzo vanogona kuderedza njodzi dzekuita, kuwedzera hupenyu hwechigadzirwa, uye kugadzirisa kuvimbika kwese kwehurongwa.

Outline

• Kunzwisisa Chii Magnet Wire Chii
• Common Mutengi Pain Points muna Magnet Wire Selection
• Makiyi Tekinoroji Paramita Izvo Zvinokosha
• Insulation Types uye Performance Different
• Chishandiso-Yakavakirwa Sarudzo Gwaro
• Kudzora Kwemhando uye Kufunga Kwekugadzira
• Kuenzanisa Tafura yeTypical Magnet Wire Options
• Mibvunzo Inowanzo bvunzwa
• Mhedziso uye Bhizinesi Kubatana

Zviri Mukati

• Chii chinonzi Magnet Wire?
• Sei Magnet Wire Selection Kazhinji Inokundikana
• Yakakosha Parameters yekuongorora
• Insulation Systems Inotsanangurwa
• Kusarudza Magnet Wire neKushandisa
• Kugadzira uye Kuvimbiswa Kwemhando
• Chigadzirwa Kuenzanisa Tafura
• FAQ

Chii chinonzi Magnet Wire?

Magnet waya, inozivikanwawo se enameled wire, kondakita yemagetsi inowanzo gadzirwa nemhangura kana aluminium uye yakavharwa nekatetepa yeanodzivirira enamel. Kusiyana newaya yakajairwa insulated, waya yemagineti yakagadzirirwa kukwirisa conductive kunyatsoshanda uchichengetedza magetsi ega ega pakati pekutendeuka mumakoiri ane maronda akasimba.

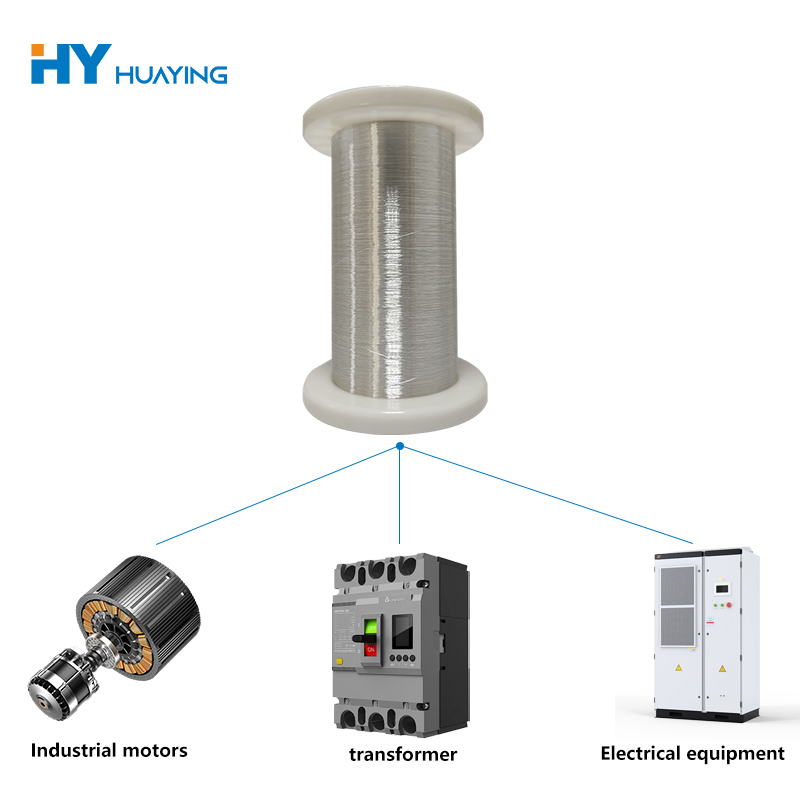

Inoshandiswa zvakanyanya mumamota emagetsi, ma transformer, jenareta, relays, solenoids, uye inductors. Iyo insulation layer inoita basa rekuita mukupisa kwekupisa, kugadzikana kwekemikari, uye kusimba kwemuchina, inobata zvakananga hupenyu hwekushanda kwechigadzirwa chekupedzisira.

Sei Magnet Wire Selection Kazhinji Inokundikana

Kutadza kwakawanda kwekushanda kwakadzoserwa kumashure kune magineti waya hakukonzerwi neconductor pachayo, asi nekutaurwa kwakashata kana kusanzwisisa kwezvinodiwa zvekushandisa. Marwadzo akajairika anosanganisira:

• Insulation cracking nekuda kwekusakwana thermal class
• Kupisa kunokonzerwa nedhayamita yakaderera conductor
• Kuderedza kushanda zvakanaka kubva pakunyorova kwepamusoro
• Kusapindirana ne impregnation varnishes kana resins
• Premature breakdown pasi pe high-frequency conditions

Nyaya idzi dzinowanzomuka kana sarudzo dzekutenga dzichibva pamutengo chete pane kurongeka kwekuita.

Yakakosha Parameters yekuongorora

Kusarudza magineti waya kunoda kuongororwa kwakarongeka kweakati wandei tekinoroji paramita:

• Conductor Material:Copper inopa yakakwira conductivity, nepo aluminium inopa huremu uye mutengo wakanakira.
• Wire Gauge:Inosarudza ikozvino-kutakura simba uye kugadzirwa kwekupisa.
• Thermal Kirasi:Inoratidza tembiricha yekushanda yakanyanya, kazhinji kubva paKirasi 130 kusvika Kirasi 220.
• Insulation Ukobvu:Inoenzanisa kuchengetedzwa kwemagetsi nekushanda kwemhepo.
• Kuputsa Voltage:Inoyera kuvimbika kwekudzivirira pasi pekunetseka kwemagetsi.

Insulation Systems Inotsanangurwa

Iyo enamel coating ndiyo inotsanangura chimiro chemagineti waya. Akasiyana masisitimu ekudzivirira akagadzirwa kuti asangane neaya anopisa uye emuchina zvinodiwa:

• Polyurethane:Yakanakisa solderability uye kuchinjika, yakakodzera zvemagetsi uye madiki mota.
• Polyester:Balanced mechanical simba uye kupisa kupisa.
• Polyesterimide:Kuwedzeredzwa kwekupisa kwekutsungirira kwemaindasitiri motors.
• Polyamide-imide:Superior kuramba kupisa, makemikari, uye abrasion.

Kusarudza iyo isiriyo yekuvharisa kunogona kutungamirira mukutadza kuvharisa kunyangwe saizi yekondukita iri chaiyo.

Kusarudza Magnet Wire neKushandisa

Mamiriro ekushandisa anofanirwa kugara achityaira magineti waya kusarudzwa:

• Transformers:Inoda yakagadzikana dielectric simba uye kuenderana neanodzivirira mafuta kana resins.
• Magetsi Motors:Kuda kutsungirira kwakanyanya kwekushisa uye kusimba kwemagetsi.
• High-Frequency Devices:Batsirwa kubva pakatsetseka pamusoro pekupedzisira uye inopindirana insulation ukobvu.
• Automotive Components:Inoda kuramba vibration, tembiricha bhasikoro, uye makemikari.

Kufananidza izvi zvinodiwa kunoderedza kuderera uye mari yekugadzirisa.

Kugadzira uye Kuvimbiswa Kwemhando

Yakavimbika magineti waya kuita kunoenderana zvakanyanya nekugadzira chaiyo. Makiyi emhando zviratidzo anosanganisira:

• Uniform enamel coating pasina pinholes
• Yakagadzikana conductor dhayamita kushivirira
• Kubatana kuwirirana pakati pe enamel uye conductor
• Kuedza kwakasimba kwekurebesa, kupisa kuvhunduka, uye dielectric simba

Mitsetse yekugadzira yepamusoro uye maitiro ekuongorora akakosha kuti uve nechokwadi chekuvimbika kwenguva refu.

Typical Magnet Wire Kuenzanisa Tafura

Mibvunzo Inowanzo bvunzwa

Q: The thermal class inokanganisa sei magineti waya yeupenyu?
Iyo yakakwira yekudziya yekirasi inobvumira waya kuti ishande zvakachengeteka pane yakakwirira tembiricha, zvakanyanya kudzikisa kupisa kwekudzivirira.

Mubvunzo: Waya yemagineti inogona kugadzirwa kune chaiwo maapplication?
Ehe, ma paramita akadai semhando yekuisa, ukobvu, uye conductor zvinhu zvinogona kugadzirwa zvinoenderana nezvinodiwa zvekushandisa.

Mubvunzo: Ko kuvharika kwakakora nguva dzose kuri nani here?
Kwete hazvo. Yakawandisa insulation inogona kuderedza slot kuzadza kunyatsoshanda uye kukanganisa electromagnetic kuita.

Mhedziso uye Kubatana

Kusarudza iyo chaiyo magineti waya isarudzo yehunyanzvi inobata zvakananga kuvimbika kwechigadzirwa, kunyatsoita, uye kuchengetedzeka. Kunzwisisa kwakajeka kwezvinhu zve conductor, masisitimu ekudzivirira, uye zvinodiwa zvekushandisa zvinobatsira kudzivirira kutadza kunodhura uye kunovimbisa kugadzikana kwekuita kwenguva refu.

Huizhou Huaying Electronic Technology Co., Ltd.inopa huwandu hwakakwana hwemagineti waya mhinduro dzakagadzirirwa kusangana dzakasiyana siyana maindasitiri uye zvekutengesa zvinodiwa. Kune akarongedzerwa kurudziro uye yakavimbika kugovera,taura nesunhasi kukurukura zvaunoda zvekushandisa uye kuongorora mikana yakareba yekushandira pamwe.
