Sei Katatu-Layer Enameled Wire Kuvandudza Magetsi Insulation uye Winding Kubudirira

Huaying, imwe nyanzvi yekugadzira waya yakavharidzirwa, inogadzirwaTriple-Layer Enameled Wirekune maapplication anoda kuvimbika kwemagetsi ekudzivirira, kuenderana conductivity, uye kunyatsoita mamhepo kuita. Kunzwisisa mavakirwo ayo, maitiro ekugadzira, uye maitiro ekusarudza kunobatsira mainjiniya nezvikwata zvekutenga zvinhu kusarudza waya yakakodzera yecompact yemagetsi nemagetsi.

Triple-Layer Enameled Wire yakagadzirirwa kusanganisa magetsi conductivity neakawanda ekudzivirira ekudzivirira akaturikidzana. Kuita kwayo kunoenderana nehukuru hwema conductor, zvekupfekedza zvinhu, ukobvu hwekudzivirira, kunamatira, uye kuenderana kwekugadzira. Kune mainjiniya ekugadzira ma transformer, inductors, coils, uye zvimwe zvinhu zvemagetsi, hunhu uhwu hunoita kuti mhepo ishande zvakanaka, kuvimbika kwemagetsi, uye kugadzikana kwekushanda kwenguva refu. Gwaro iri rinotsanangura misimboti yekushanda, mabhenefiti akakosha, kufunga kwekugadzira, mamiriro ekushandisa, uye zvinhu zvekutenga zvine chekuita nekatatu-layer insulated winding waya. Inosumawo kugona kugadzira kwaHuaying uye inopa mibvunzo inoshanda inofanirwa kubvunzwa nevatengi vasati vasarudza waya yakatarwa.

Zviri Mukati

1. Chii chinonzi Triple-Layer Enameled Wire?
2. Chimiro Chayo uye Kuumbwa Kwezvinhu Zvinoshanda Sei?
3. Ndezvipi Zvakanakira Kuita Kwazvo?
4. Ko Triple-Layer Enameled Wire Yakagadzirwa Sei?
5. Ndekupi Triple-Layer Enameled Wire Inoshandiswa?
6. Unofananidza sei Wire Specifications?
7. Vatengi Vanofanira Kusarudza Sei Waya Yakarurama?
8. Chii Chaunofanira Kuziva NezveHuaying?
9. Mibvunzo Inowanzo bvunzwa
10. Mhedziso

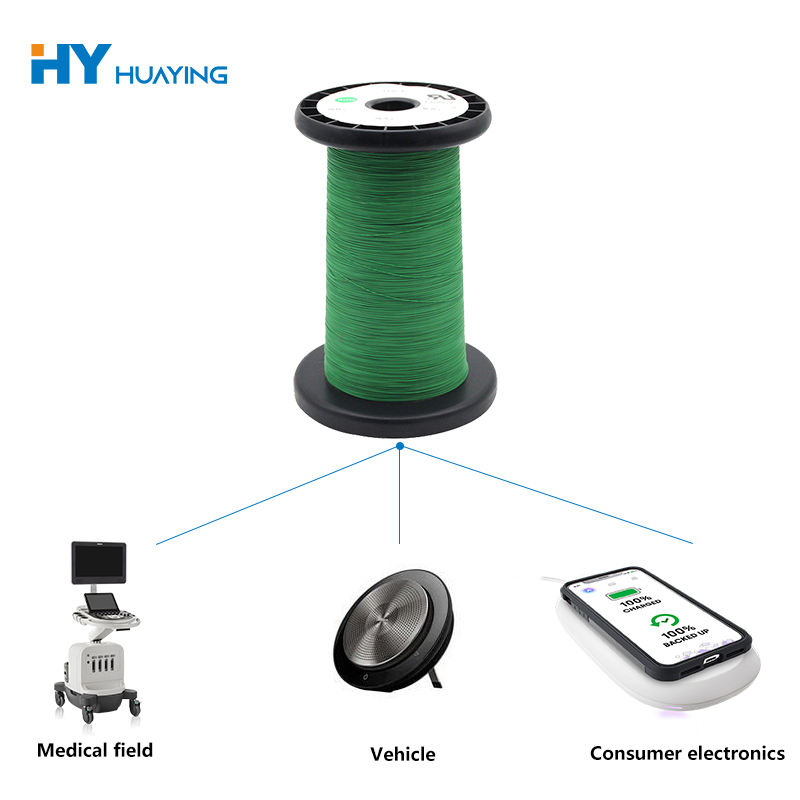

1. Chii chinonzi Triple-Layer Enameled Wire?

Triple-Layer Enameled Wire iwaya inofambisa yakagadzirwa neakawanda ekuisa marata kana maseru kuti abatsire nemagetsi kupatsanura conductor kubva kuzvinhu zvakatenderedza. Zvichienderana nekugadzirwa kwechigadzirwa, conductor inogona kugadzirwa kubva kumhangura kana imwe yakatsanangurwa conductive zvinhu, nepo iyo insulation system inosarudzwa zvinoenderana nemagetsi, zvinopisa, uye zvemuchina zvinodiwa.

Kusiyana nekondukita inodzivirirwa nejira rimwe chete, matatu-layer insulation dhizaini inopa akawanda ekudzivirira zvipingamupinyi. Ichi chivakwa chinogona kuvandudza kuvimbika kwekudzivirira uye kubatsira vagadziri kugadzira compact electromagnetic zvikamu uko nzvimbo yekupetera inogumira.

Izwi harifanire kuvhiringika nemhando dzese dzewaya yakavharirwa katatu. Enameled winding wire uye triple-insulated waya inogona kuva neasiyana masisitimu ekupfekedza, nzira dzekuvaka, uye zvinodiwa zvekutevedzera. Vatengi saka saka vanofanirwa kuona iyo chaiyo chigadzirwa chimiro pane kufunga kuti ese matatu-layer waya anogovana zvakafanana maitiro ekuita.

Kuti uwane rumwe ruzivo nezve chigadzirwa chiripo, shanyira iyo Huaying Triple-Layer Enameled Wire chigadzirwa peji.

2. Maumbirwo Ayo Nekuumbwa Kwezvinhu Zvinoshanda Sei?

Kuita kwekatatu-layer winding wire kunoenderana nekuti conductor uye insulation system inoshanda pamwe sei. Chikamu chega chega chinobatsira kune tambo yese yemagetsi nemakanika maitiro.

• Conductive core:Inotakura magetsi kuburikidza nemhepo. Conductor zvinhu, zvimiro zvemuchinjika, uye tambo kumisikidzwa inokanganisa kupikisa kwemagetsi uye iko-yekutakura kugona.
• Primary insulation layer:Inopa yekutanga yemagetsi chipingamupinyi pakati pe conductor nepedyo matende kana zvikamu.
• Yepakati insulation layer:Inowedzera chimwe chipingamupinyi chinodzivirira uye chinobatsira kune yakazara insulation system.
• Outer insulation layer:Inobatsira kuchengetedza zvidimbu zvepasi panguva yekubata, kupeta, uye kusangana, zvichienderana nemamiriro ezvinhu.

Iko kuumbwa chaiko kunosiyana nekutsanangurwa kwechigadzirwa. Ruzivo rwechigadzirwa chaHuaying runotsanangura maitiro ekugadzira anosanganisira polyamide firimu, high-insulation spray coating, uye fiberglass. Vatengi vanofanirwa kusimbisa kutevedzana kwezvinhu uye kuvaka kweiyo yakasarudzwa modhi vasati vabatanidza mudhizaini.

Insulation ukobvu inonyanya kukosha. Yakanyanya kutetepa insulation inogona kusasangana neinodiwa dielectric kuita, nepo zvisingaite gobvu insulation inogona kuwedzera yakapedzwa waya dhayamita uye kuderedza nzvimbo iripo yekumonereka. Dhizaini yakaenzana inotsigira kuvimbika kwemagetsi uye kurongedza kunoshanda kwechikamu.

3. Ndeapi Main Performance Yakanakira?

Yakavimbika Magetsi Insulation

Multiple insulation layers inogona kupa imwe dziviriro kubva pamagetsi kusangana pakati pemakondakita ari padyo uye zvinhu zvakatenderedza. Chaiyo dielectric simba rinoenderana nemidziyo yekuisa, ukobvu, mhando yekugadzira, uye mamiriro ebvunzo. Mainjiniya anofanirwa kusimbisa iwo anodiwa anomira nemagetsi uye anoshanda zviyero asati abvumidza waya yekuchengetedza-yakakosha michina.

Inogona kune Compact Winding Designs

Iko uko iyo insulation system inosangana nezvinodiwa zvemagetsi zvekushandisa, kuvakwa kwewaya kwakanyatso kukwenenzverwa kunogona kubatsira kuderedza kudiwa kwezvinhu zvekuwedzera zvekudzivirira. Iyo inokonzeresa nzvimbo yekuchengetedza zvinoenderana nechikamu dhizaini uye chaiyo yekudzivirira zvinodiwa; havafanirwe kufungidzirwa pasina kuongorora zviyero zvakakodzera.

Consistent Manufacturing Quality

Uniform conductor dimensions uye insulation coatings inotsigira fungidziro yekumonereka maitiro. Kukanganisa kwekupfeka, madhayamita asingaenderane, kana kunamatira kwakashata kunogona kugadzira matambudziko panguva yekuzviitira mhepo uye zvinogona kukanganisa kuvimbika kwechikamu chakapedzwa.

Kufunga Kwenguva Yakareba Mutengo

Kusarudzwa kwewaya kunofanirwa kuverengera kupfuura mutengo wekutanga wekutenga. Hunhu hunowirirana hunogona kubatsira kudzikisa kukanganisa kwekugadzira, kugadzirisa zvakare, uye kugadzirisa kwakabatana nekutadza-kwakabatana nekutadza. Mutengo chaiwo wekubatsirwa unoenderana nemamiriro ekushandisa, hupenyu hwechigadzirwa, goho rekugadzira, uye mhando yezvimwe zvinhu zviri kuongororwa.

Aya mabhenefiti ane zvirevo pakusarudza yakakodzera kutsanangurwa uye nekuona mashandiro ayo. Hapana dhizaini yekumisa inobvisa kudiwa kwekudzivirira kwakakodzera kwemagetsi, kuyedzwa, uye dhizaini yakachengeteka yemidziyo.

4. Triple-Layer Enameled Wire Yakagadzirwa Sei?

Kugadzira kuenderana kwakakosha nekuti conductor uye insulation inofanira kuramba yakafanana nehurefu hwewaya yakapedzwa. Huaying anotsanangura akati wandei akakosha matanho mukugadzira kwayo.

1. Wire drawing:Iyo conductive zvinhu inokweverwa kune zviyero zvinodiwa. Hunhu hwepamusoro uye kuenderana kwedimensional kwakakosha kune anotevera ekubatisa maoperation.
2. Annealing:Inodzorwa kupisa kurapwa inogona kugadzirisa conductor's mechanic properties, ichibatsira kuti iwane hunhu hunodiwa pamhepo nekuenderera mberi nekugadzirisa.
3. Insulation application:Coating kana insulating zvinhu zvinoshandiswa zvinoenderana neyakatsanangurwa chigadzirwa kuvaka. Uniform coverage inobatsira kudzikisira mavara akatetepa uye zvimwe zvingangokanganisa.
4. Kudzora ukobvu:Mugadziri anodzora zvimiro zvekudzivirira kuti awane iyo inodiwa yakapedzwa dhayamita uye kushanda kwemagetsi.
5. Kurapa:Iko iyo yekubikira system inoda kurapwa, inodzorwa kugadzirisa kunobatsira kugadzira iyo yakarongerwa yekuvhara zvivakwa uye kunamatira.
6. Kuongorora kwekupedzisira:Yakakodzera dimensional, yekuona, yemagetsi, uye yemakanika cheki inobatsira kuona kuenderana nekutsanangurwa kwechigadzirwa.

Huaying's chigadzirwa peji inoshuma ukobvu-kutonga kurongeka kwe ± 0.005 mm kune yayo yakatsanangurwa yekubatisa maitiro. Vatengi vanofanirwa kusimbisa referensi yekuyera, modhi inoshanda, uye nzira yekuongorora kana vachishandisa iyi nhamba sezvinodiwa zvekutenga.

Kuzvikwata zveinjiniya, zvinyorwa zvinonyanya kukosha zvemhando yepamusoro zvinosanganisira zvakatsanangurwa zvechigadzirwa, maitiro ekuongorora, ruzivo rwekuteedzera parinowanikwa, uye mhedzisiro yebvunzo inoenderana nechishuwo chakatarisirwa.

5. Ndekupi Triple-Layer Enameled Wire Inoshandiswa?

Triple-layer insulated winding wire inogona kutariswa kune zvigadzirwa zvemagetsi nemagetsi umo kuvimbika kwe insulation, compact winding, uye consistent conductivity yakakosha. Kukodzera kunoenderana newaya chaiyo yakatarwa uye mamiriro ekushandisa emidziyo.

• Transformers:Winding conductors anofanirwa kusangana nevoltage yechikamu, tembiricha, insulation, uye dimensional zvinodiwa.
• Inductors uye chokes:Waya inomonerera yakafanira inotsigira magineti echikamu madhizaini anoshandiswa mukushandura simba uye kusefa maseketi.
• Kuchinja magetsi:Insulation uye conductor maitiro anofanirwa kuenderana nekuchinja frequency, voltage stress, thermal mamiriro, uye zvinoshanda zvekuchengetedza zvinodiwa.
• Zvigadzirwa zvemagetsi:Compact power modules uye mamwe maassemblies emagetsi anogona kubatsirwa kubva kune inomonereka waya yakasarudzwa kune shoma yekuisa nzvimbo.
• Maindasitiri emagetsi masisitimu:Tsika dzemamonya dzinoda kutsanangurwa kwewaya kunoenderana nebasa ravo uye nemamiriro ekunze.

Usati wasarudza waya yeimwe yeaya maapplication, mainjiniya anofanirwa kuongorora kukwira kwetembiricha, kushushikana kwemagetsi, kutenderera kwemhepo, frequency yekushanda, kuratidzwa kwehunyoro, uye zvinodiwa zvitupa. Kukodzera kwechigadzirwa kune imwe transformer kana magetsi haaite otomatiki kukodzera kune yega yega dhizaini.

6. Unofananidza sei Wire Specifications?

Kuenzanisa zvirevo zvinovimbika kupfuura kusarudza waya yakavakirwa pazita rechigadzirwa chete. Iyi tafura inotevera inopfupisa iwo makuru maparamendi anofanirwa kuongororwa nevatengi.

Huaying inoburitsa muenzaniso masisitimu ekondukita, dhayamita yese tarisiro, uye conductor-resistance value pane yayo chigadzirwa peji. Nekuda kwekuti kukosha kwacho kwakanangana nemuenzaniso, vatengi vanofanirwa kubvunza iyo yekutanga tafura yekumisikidzwa uye kukumbira simbiso vasati vashandisa chero nhamba mukuverenga kweinjiniya.

Reference: Triple-Layer Enameled Wire zvakatemwa kubva kuHuaying.

7. Vatengi Vanofanira Kusarudza Sei Rudyi Waya?

Kusarudza waya chaiyo kunotanga nechishandiso pane kungotaurawo nezve kuita kwe insulation. Zvikwata zvekutenga uye mainjiniya ekugadzira anogona kushandisa inotevera rondedzero kupfupisa nzira dzakakodzera.

• Tsanangura zvinodiwa nemagetsi:Rondedzera kushanda voltage, inotarisirwa ikozvino, frequency, dielectric inomira zvinodiwa, uye inogamuchirwa kuramba.
• Simbisa mamiriro ekupisa:Gadzira tembiricha inotarisirwa kushanda, kukwira kwetembiricha, nzira yekutonhodza, uye kutenderera kwebasa.
• Tarisa zvipingamupinyi zvemhepo:Sarudza hwindo rinomonereka rinowanikwa, rinodiwa rakapedzwa dhayamita, kubhenda radius, uye kushomeka kwemidziyo yekugadzira.
• Tarisa iyo insulation system:Kumbira ruzivo nezve layer zvinhu, ukobvu kushivirira, kunamatira, uye yakakodzera nzira dzemagetsi dzekuyedza.
• Ongorora zvinodiwa zvekutevedzera:Ziva zviyero uye mvumo inodiwa kune yakapedzwa michina uye musika wekuenda.
• Ongorora kuenderana kwekugadzirwa:Bvunza nezve maitiro ekuongorora, batch kuenderana, kurongedza, uye kuteedzera zvinyorwa.
• Kumbira sampuli kana zvakakodzera:Yedza sampu yewaya uchishandisa iyo chaiyo yekupepeta maitiro uye chikamu dhizaini usati wabvumidza vhoriyamu kugadzirwa.

Kubvunzurudza kwakajeka kwehunyanzvi kunofanirwa kusanganisira kudhirowa kana mativi etarisiro, gore kana batch kudiwa, mamiriro ekushanda, zviyero zvinodiwa, uye chero yakakosha kurongedza kana kutarisirwa. Ruzivo urwu runobatsira mutengesi kuona kana modhi iripo yakakodzera kana kuti yakasarudzika inoda kuongororwa.

8. Chii Chaunofanira Kuziva NezveHuaying?

Huizhou Huaying Electronic Technology Co., Ltd. inopa insulated waya zvigadzirwa uye inotsanangura kutarisa kwayo pakuvandudzwa kwechigadzirwa, kunaka kwekugadzira, uye rutsigiro rwevatengi. Zvinoenderana neruzivo rwechigadzirwa chekambani, iyo Triple-Layer Enameled Wire kugadzirwa maitiro inosanganisira waya kudhirowa, annealing, insulation application, inodzorwa kurapa, uye dimensional control.

Iyo kambani zvakare inoshuma kuve neanopfuura gumi patents uye R&D timu yevanhu vanopfuura makumi maviri. Idzi nhamba dzakashumwa nekambani dzinopa nhoroondo yezvayakataura budiriro, asi vatengi vanofanirwa kukumbira magwaro akakodzera kana patent muridzi, hunyanzvi hwekuita, kana humwe humbowo hunodiwa kuti vapihwe mvumo.

Paunenge uchiongorora Huaying kana mumwe mutengesi wewaya, zvikwata zvinotenga zvinofanirwa kufunga zvinopfuura zvitupa zvekambani. Mibvunzo inonyanya kukosha ine chekuita newaya yakarongwa ichienderana nechikumbiro, kana marekodhi emhando inodiwa aripo, uye kuti masampula nemabhechi ekugadzira anogona kuramba achizadzisa zvakabvumiranwa.

Kuti uwane ruzivo rwakanangana nechigadzirwa, shandisa iyo yepamutemo Huaying Triple-Layer Enameled Wire peji sepokutangira kwenhaurirano yehunyanzvi.

9. Mibvunzo Inowanzo bvunzwa

1. Chinangwa chikuru cheTriple-Layer Enameled Wire ndechei?

Chinangwa chayo chikuru ndechekubatanidza conductive core neakawanda insulation layers, kubatsira kupatsanura conductor nemagetsi kubva pakatarisana nekutendeuka uye zvikamu zvakatenderedza. Iyo chaiyo yekudzivirira nhanho inotsamira pakuvakwa kwewaya, zvivakwa zvezvinhu, uye yakasimbiswa bvunzo mhinduro.

2. Ko Triple-Layer Enameled Wire yakafanana ne triple-insulated waya?

Kwete hazvo. Iwo mazwi anogona kutsanangura zvigadzirwa zvine hukama, asi conductor, insulation zvinhu, nzira yekupfekedza, uye zvinodiwa zvekuteerera zvinogona kusiyana. Gara uchisimbisa iyo yakadzama yekuvaka uye inoshanda chigadzirwa chiyero usati wabata maviri seanochinjika.

3. Ndezvipi zvinhu zvinotarisa kushanda kwemagetsi kwetambo?

Zvinhu zvakakosha zvinosanganisira conductor zvinhu uye zviyero, kuramba kwemagetsi, ukobvu hwekudzivirira, simba re dielectric, chiyero chetembiricha, uye kuenderana kwekugadzira. Kuita kunofanirwa kuongororwa uchishandisa zvakatemwa uye mamiriro ekuyedzwa anoenderana neanotarisirwa midziyo.

4. Ko Triple-Layer Enameled Wire inogona kugadzirwa?

Kugadzirisa kunogona kuitika zvichienderana nekugona kwemugadziri uye zvinodiwa zvekugadzira. Vatengi vanofanirwa kupa saizi yavanoda conductor, dhayamita yakapera, zvinodiwa zvekudzivirira, magetsi emagetsi, uye huwandu hunotarisirwa hwekurongeka kuti uone kuitika.

5. Vatengi vanogona sei kuona kunaka kwechigadzirwa vasati vaisa odha yakawanda?

Kumbira iro razvino tekinoroji data pepa, akakodzera ekuongorora marekodhi, uye anowanikwa magwaro ekuteerera. Pazvinenge zvakakodzera, ongorora samples kuburikidza nekutarisa mativi, miyedzo yemhepo, uye bvunzo dzemagetsi dzinoitwa zvinoenderana nezvinodiwa zvekushandisa.

6. Mashoko api anofanira kuiswa muchikumbiro chekotesheni?

Sanganisira iyo inodiwa waya modhi kana kudhirowa, zviyero zvema conductor, kuvaka insulation, mashandiro emagetsi anonangwa, zviyero zvinoshanda, huwandu hweodha, nzvimbo yekuendesa, uye chero kuyedzwa kana kurongedza zvinodiwa. Chikumbiro chakazara chinoita kuti kuongororwa kwehunyanzvi uye kotesheni ishande zvakanyanya.

10. Mhedziso

Triple-Layer Enameled Wire inogona kutsigira magadzirirwo emagetsi anoda kuvharisa kwakavimbika, kuenderana conductivity, uye mhepo inoshanda. Kusarudza chigadzirwa chakakodzera kunoda kunyatso kuenzanisa kwezviyero zve conductor, kuvaka insulation, dielectric performance, thermal limits, uye mhando yekugadzira. Nekusimbisa zvinhu izvi zvisati zvagadzirwa, mainjiniya uye zvikwata zvekutenga zvinogona kuderedza kusawirirana uye kuita sarudzo dzekutenga dzine ruzivo. Kana iwe uchitsvaga insulated winding waya ye transformer, inductors, kana mamwe magetsi ekushandisa,taura naHuayingkukurukura zvaunoda zvetekinoroji, kukumbira kutsanangurwa kwechigadzirwa, uye kuongorora mhinduro yakakodzera yeprojekiti yako.
