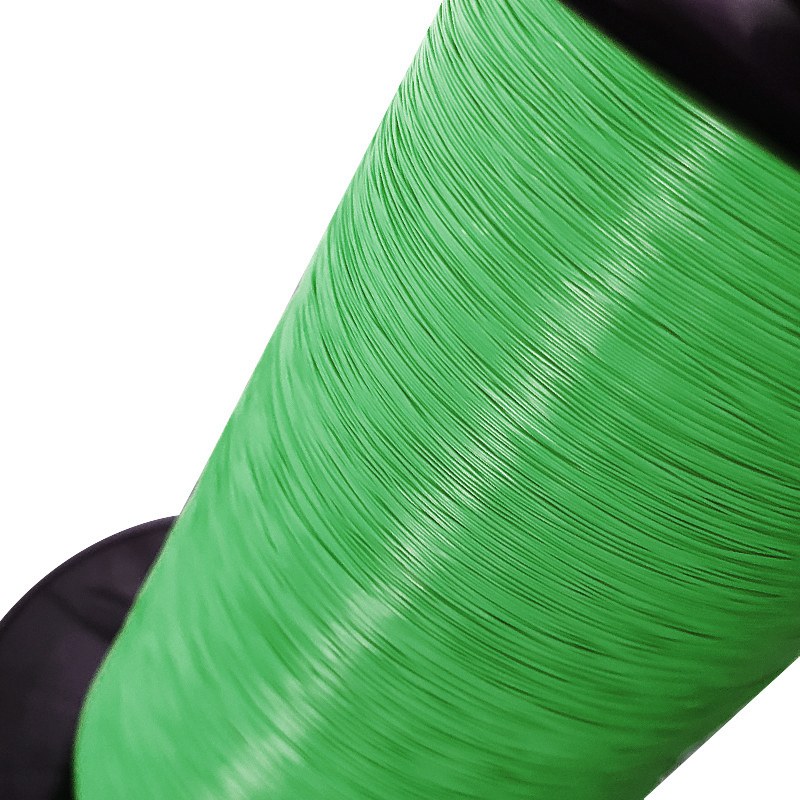

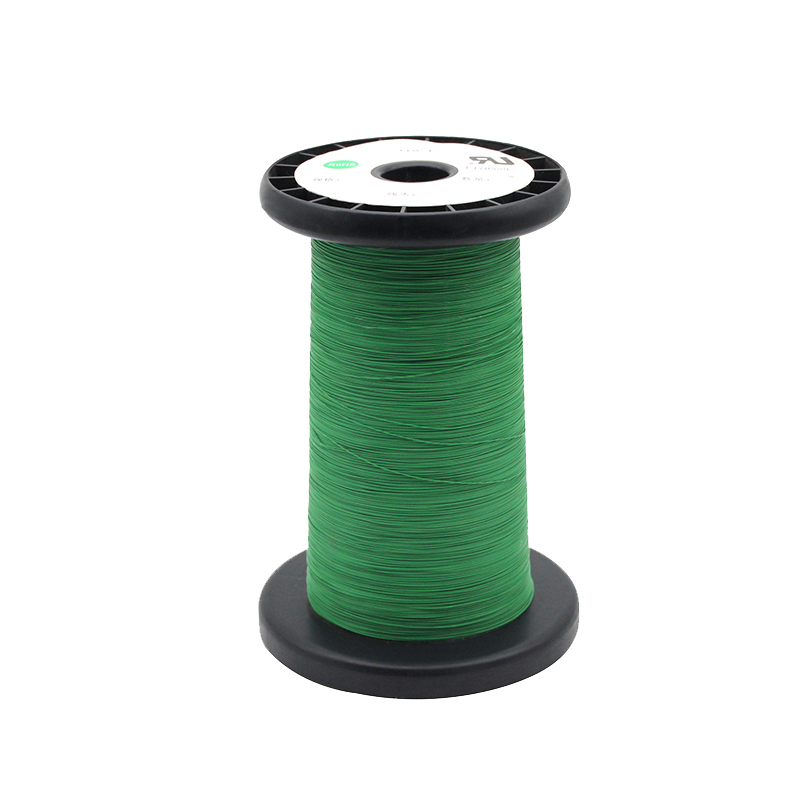

Kirasi F Matatu-Layer Insulated Wire
Huaying Kirasi F Three-Layer Insulated Wire inogadzirwa muChina neHuizhou Huaying Electronic Technology Co., Ltd. Kusarudza chigadzirwa ichi kunobvisa kudiwa kwekunetseka nezvehunyanzvi hwekuita. Kambani yedu haingobatanidzi pamatendi gumi chete, asiwo inodyidzana neShenzhen Research Institute yeHuazhong University yeScience neTekinoroji paR&D, ichibatanidza zvisina mutsetse masimba ekutsvagisa kwesainzi eyunivhesiti neruzivo rwedu rwekugadzira. Chinotonyanya kumanikidza inyaya yekuti makambani makuru ane zvinodiwa zvakanyanya zvechigadzirwa, seXiaomi, Huawei, uye BYD, agara achishandisa chigadzirwa ichi, achiratidza kuvimbika uye runyararo rwepfungwa.
Insulation Layer Materials
Iyo insulation layer ndiyo musimboti wekudzivirira weiyo Huaying Kirasi F Tatu-Layer Insulated Wire, uye zvinhu zvayo ndezvemhando yepamusoro. Yayo matatu-layer kuvakwa kwePET + PET + PA inoita se "matatu-layer nhumbi dzokurwa" kune conductor, ichipa yakanyanya dziviriro. Ukobvu zvakare hunodzorwa nemazvo. Hwose hwekuvharisa ukobvu hweimwe-strand zvigadzirwa ndeye 0.09-0.1mm, nepo iyo yeakawanda-strand zvigadzirwa iri 0.1mm. Zvisinei nekuti ingori imwe chete kana yakawanda-tambo, ukobvu hwega ega insulation layer inodzorwa kusvika 0.03-0.035mm. Kuedzwa uchishandisa zviridzwa zveunyanzvi, kufanana kunenge kusiri-kutemerwa, kunopa yakazara, kuchengetedzwa kwakakwana kune conductor.
Product Core Advantages
Huaying Kirasi F Matatu-Layer Insulated Wire's yakakosha mabhenefiti anonyanya kugadzirisa marwadzo eindasitiri, zvichinyatso kupa mabhizinesi "chiedza chegirinhi" chekugadzira. Kuishandisa zvakananga kunoderedza saizi yekudhinda, zvichibvumira kushandiswa kwakanyanya kwenzvimbo yekugadzira. Inovandudzawo kushanda zvakanaka kwekugadzira, kugonesa maitiro ayo aimboda nhanho dzakawanda kuti dzipedzwe mune imwe nhanho. Zvinotonyanya kukosha, inoderedza mutengo wakazara, kuchengetedza mari pamatanho ese, kubva pakutenga zvinhu kusvika pakugadzira nekugadzirisa. Kune mabhizinesi, izvi zvakanakira hazvisi zvekungopusa; vanopa mabhenefiti anobatika, vachipa mutengo wakasiyana-siyana wepamusoro, zvichiita kuti zvive zvese zvinoshanda uye zvinodhura.
Product Thermal Shock Testing
Thermal shock test yakafanana nekuisa Huaying Kirasi F matatu-layer insulated waya pabvunzo. Chekutanga, sampuli inosvika 305mm pakureba yakaputirwa zvakasimba netsvimbo yakatsetseka, inotenderera gumi, painodzorwa kumhanya kwe1 kusvika ku3 kutendeuka pasekondi. Iyo chaiyo tension ye118Mp/mm² inoiswa kune waya kuti ive nechokwadi chekuti sampuli inonamatira zvakasimba kutsvimbo. Munguva yekuputira, vashandi vanotora zvakanyanya kudzivirira kutambanudza, kupindirana, uye kukanganisa. Mushure mekuputira, sampuli inobviswa kubva padanda uye inoiswa muchoto pane tembiricha inoratidzwa muTable 5 kwemaminitsi makumi matatu, nekushivirira kwakasimba kwekushisa kwe ± 5 ° C. Mushure mekubika, sampuli inobviswa kubva muchoto uye inobvumirwa kuti itonhorere zvakasununguka kusvika kune tembiricha yekamuri. Muenzaniso wepamusoro unobva wanyatsoongororwa uchishandisa girazi rinokudza nehukuru hunotsanangurwa muTebhu 6. Chigadzirwa chacho chinonzi hachina kukodzera kana kunyange kutsemuka kuduku kuchionekwa. Pane zero kushivirira kune zvirema.
| conductor | zvakazara dhayamita chinangwa value | Muitisi resistance (20℃) (Ω2/km) | conductor | zvakazara dhayamita chinangwa value | Muitisi resistance (20℃) (Ω2/km) |
| 0.17x7 | 0.781 | 128.5 | 0.35x7 | 1.331 | 30.3 |
| 0.18x7 | 0.811 | 114.6 | 0.37x7 | 1.392 | 27.1 |
| 0.20x7 | 0.872 | 92.8 | 0.20x10 | 1.004 | 65.0 |
| 0.23x7 | 0.964 | 70.2 | 0.20x15 | 1.184 | 43.3 |
| 0.23x15 | 1.318 | 32.8 | 0.20 × 25 | 1.471 | 32.5 |
| 0.25x7 | 1.025 | 27.7 | 0.21x7 | 0.903 | 254.00 |
| 0.25x19 | 1.559 | 21.9 | 0.22x7 | 0.933 | 26.0 |
| 0.27x7 | 1.086 | 51.0 | 0.25 × 2 | 0.700 | 84.2 |
| 0.30x7 | 1.178 | 41.3 |
|
||
