Kirasi B Matatu-Layer Insulated Wire
Huaying Class B Three-Layer Insulated Wire inogadzirwa neHuizhou Huaying Electronic Technology Co., Ltd. Kuseri kwechigadzirwa ichi kune Huizhou Huaying Electronic Technology Co., Ltd. Kambani iyi yakabatanidzwa zvakanyanya mundima iyi kubva muna 2012, uye yakazvipira kwemakore gumi mukusimudzirwa kwayo, zvichiita kuti ive kambani yakanyatsosimbiswa uye yakavimbika. Zvakatonyanya kusimbisa, inobata zvitupa zvine mukurumbira zveNational High-Tech Enterprise uye Specialized uye New Enterprise, ichipa vimbiso yakapetwa kaviri yemhando yechigadzirwa uye hwaro hwakasimba. Kutisarudza isu zvinoreva kusarudza mudiwa akavimbika uye anokwanisa!
Chigadzirwa Chitarisiko uye Zvinotsanangurwa

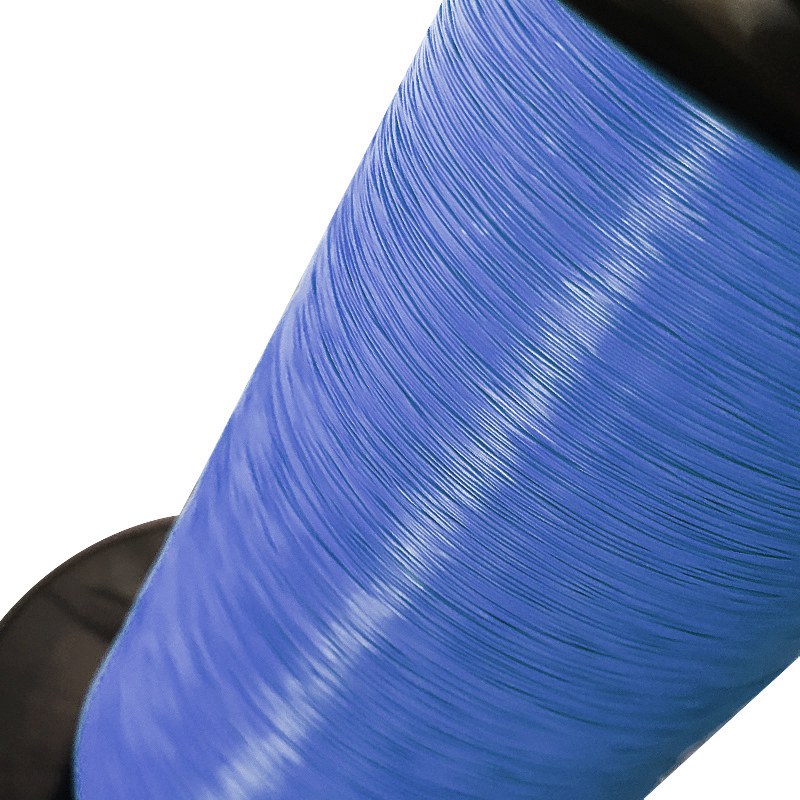

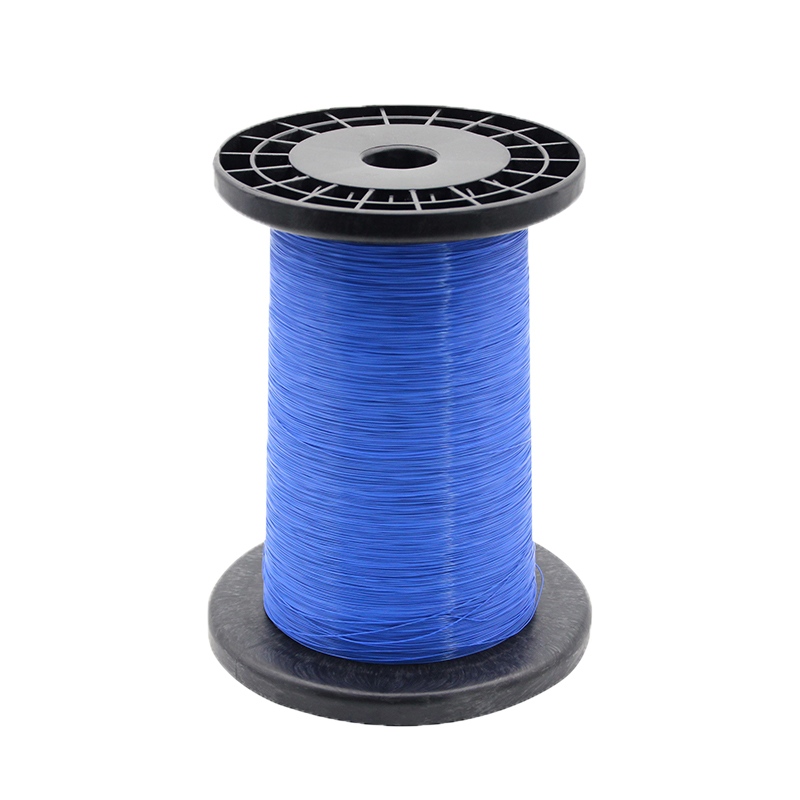

Iyi Huaying Kirasi B Matatu-Layer Insulated Wire inoyevedza, ine yakasarudzika, yakachena ruvara inoratidzika zvinoyevedza uye isina musono yakabatanidzwa mune chero nzvimbo yekugadzira. Chigadzirwa chacho chinouyawo muhupamhi hwakakwana hwehukuru, hunosanganisira matatu-layer single-strand uye matatu-layer akawanda-strand, akakodzera kune akasiyana maitiro ekugadzira. Conductor zvirevo zvinofukidza zvakajairwa huwandu hwe0.15-1.00mm. Usanetseka nezve zvakakosha saizi zvinodiwa; ingotizivisa uye tinogona kuzvigadzirisa. Isu tinopa kuchinjika kwakasarudzika, kuve nechokwadi chakanyatsoenderana kune ese madiki-batch miedzo inomhanya uye yakakura-chiyero kugadzirwa.
Conductor Materials
Huaying Kirasi B Matatu-Layer Insulated Wire inopa yakasarudzika sarudzo yezvishandiso zvemakondakita, sekuve neakawanda seti e "giya repamba" rechigadzirwa chako, rakagadzirira chero application. Single-strand modhi inowanikwa ne single-core isina mhangura, enameled wire, kana tinned waya. Single-core bare copper inofambisa magetsi nekukurumidza, enameled waya inopa yakavimbika insulation, uye waya yetinned inopa yakasarudzika corrosion resistance. Multi-strand modhi inoratidzira akawanda-musimboti enameled kana tinned waya, ichipa kuchinjika kwakasarudzika uye kubhenda kusingaite. Ingave yakashandiswa mune yakakwira-frequency kana maseketi akajairwa, munzvimbo dzine hunyoro kana dzakaoma, unogona kusarudza iyo conductor zvinhu inoenderana nezvido zvako, inonyatsoenderana nezvinodiwa zveese mamiriro!
Product Elongation Testing
Elongation kuyedzwa inhanho yakakosha mukuona kuoma kweHuaying Kirasi B matatu-layer insulated waya, uye isu tinoitora zvakanyanya. Panguva yekuyedzwa, tinotanga tatora sampuli ingangoita 400mm kureba kubva pawaya yakapedzwa. A 250mm gauge wire spacing inonyatsoiswa pakati pemuenzaniso. Muenzaniso wacho unobva wadhonzwa nepakati uchishandisa muchina wekuyedza uchimhanya uchimhanya zvishoma kudarika 300mm/min. Mushure mekuputsika, zvikamu zvakatemwa zvakanyatsobatanidzwa zvakare, uye kureba pakati petambo dzegeji kunoyerwa zvakarurama. Elongation inobva yaverengwa pachishandiswa formula. Kana mufananidzo wacho ukatsemuka netsaona kunze kwewaya yegeji, bvunzo haina kushanda uye sampuli itsva inotorwa kuti iongororwe. Izvi zvinovimbisa kuti yese seti yedata ndeyechokwadi uye yakavimbika, ichivimbisa kuoma kwechigadzirwa.
| conductor | Yakapedzwa kunze kwedhayamita yechinangwa kukosha | Conductor kuramba (20°C) (Q2/KM) | conductor | Yakapedzwa kunze kwedhayamita yechinangwa kukosha | Conductor kuramba (20°C) (Q2/KM) |
| 0.15 | 0.400 | 1037.00 | 0.35 | 0.600 | 185.70 |
| 0.16 | 0.410 | 908.80 | 0.37 | 0.620 | 165.90 |
| 0.17 | 0.420 | 853.50 | 0.40 | 0.650 | 141.70 |
| 0.18 | 0.430 | 757.20 | 0.45 | 0.700 | 112.10 |
| 0.20 | 0.450 | 577.20 | 0.50 | 0.750 | 89.95 |
| 0.21 | 0.46 | 549.00 | 0.55 | 0.800 | 78.15 |
| 0.22 | 0.470 | 498.40 | 0.60 | 0.850 | 65.26 |
| 0.23 | 0.480 | 454.50 | 0.65 | 0.900 | 55.31 |
| 0.24 | 0.490 | 416.20 | 0.70 | 0.950 | 47.47 |
| 0.25 | 0.500 | 370.20 | 0.75 | 1.000 | 41.49 |
| 0.26 | 0.510 | 358.40 | 0.80 | 1.050 | 36.08 |
| 0.27 | 0.520 | 331.40 | 0.85 | 1.100 | 31.87 |
| 0.28 | 0.530 | 294.10 | 0.90 | 1.150 | 28.35 |
| 0.29 | 0.540 | 285.70 | 0.95 | 1.200 | 25.38 |
| 0.30 | 0.550 | 254.00 | 1.00 | 1.250 | 23.33 |
| 0.32 | 0.570 | 222.80 |
|
||
