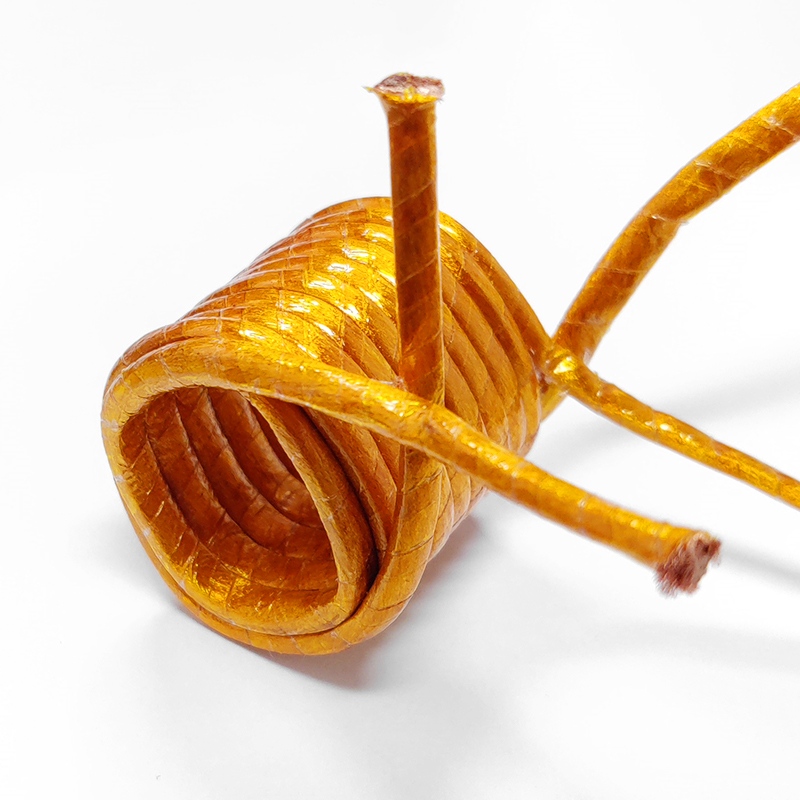

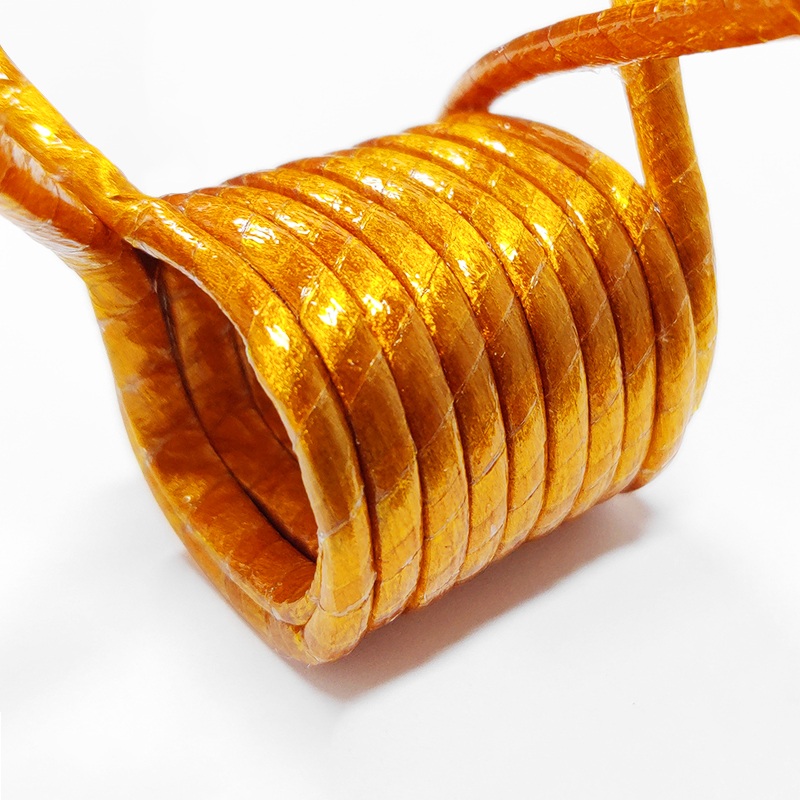

Litz Wire Coil
Huaying Litz Wire Coil chigadzirwa chakasarudzika chepamusoro-frequency application inogadzirwa neHuizhou Huaying Electronic Technology Co., Ltd. Simba rekambani rinoratidzwa pamusika. Kambani iyi zvakare inodyidzana neShenzhen Research Institute yeHuazhong University of Science and Technology paR&D. Kare, pakushandira makambani makuru akaita seXiaomi neHuawei, ivo vakagadzira macoil akafanana kune avo akakwira-frequency emagetsi zvikamu, achivawanira mukurumbira wakasimba. Uyezve, kambani iyi ISO 9001 uye IATF 16949 yakasimbiswa, kuve nechokwadi chekugadzirisa kugadzirwa. Kubva padhizaini kusvika pakuendesa, nhanho yega yeiyi Litz Wire Coil inonamatira kune zviyero, kuve nechokwadi kuti une runyararo rwepfungwa paunenge uchiisarudza.
Kudzora kwakasimba kweChigadzirwa Turn Count Precision
Paunenge uchigadzira Huaying Litz Wire Coils, kutendeuka kuverenga kwakakosha kwakakosha. Kunyangwe kukanganisa kushoma muhuwandu hwekutendeuka kunogona kutsauka kubva kune transformer's electromagnetic paramita uye nyore kukonzera matambudziko panguva yekumisikidzwa kuisirwa. Izvi zvinonyanya kuitika kana kupeta makoiri ane matenderedzwa akawanda, uko kunyangwe kushoma kusatarisisa kunogona kukonzera kukanganisa. Isu takafunga izvi kwenguva refu uye nekusimudzira magadzirirwo emusangano wedu 7S nehunyanzvi hwehunyanzvi. Isu ikozvino tinoshandisa zvizere otomatiki mahwindi michina. Muchina wega wega une chaiyo yekuverenga system inotarisisa huwandu hwekutendeuka munguva chaiyo panguva yemhepo, ichichengeta kukanganisa mukati me ± 1 kutendeuka. Izvi zvinovimbika zvakanyanya kupfuura kumonereka nemaoko kana michina yakajairika.
Precise Product Shape Customization
Chimiro cheiyo transformer coil inofanirwa kusangana zvakakwana nezvinodiwa nevatengi, zvikasadaro zvichakanganisa kunotevera kugadzirisa uye kusangana. Izvi ndezvechokwadi kunyanya kune anowanzoonekwa "elliptical coils" uye "chamfered rectangular coils" pamusika. Kunyangwe iwo achigona kutaridzika akafanana nerectangle yenguva dzose, anoda yakakwira dimensional kurongeka, zvichiita kuti ive nyore kune isiri-yakajairwa kugadzirwa nevazhinji vagadziri. Isu tinodyara yakakosha kuedza mukudzora chimiro uye tine yakatsaurirwa yekuumba musangano. Zvisinei nemutengi anodiwa Huaying Litz Wire Coil chimiro, isu tinogona kugadzirisa tsika mold zvichibva pane yakadzama dimensional kudhirowa. Kunyangwe iine maumbirwo akaomarara, isu tinovimbisa dimensional kushivirira mukati me 0.05mm, tichizadzisa zvizere zvinotevera zvekugadzirisa zvinodiwa.
Core Product Performance Inosangana neMitemo
Iyo coil ndiyo "moyo" we transformer. Kuve nechokwadi chenguva refu, kushanda kwakachengeteka, simba remagetsi, simba rekupisa, uye simba remagetsi zvakakosha. Yedu Huaying Litz Wire Coil yaisa simba rakawanda muzvinhu izvi. Nezve simba remagetsi, iyo insulation layer inoshandisa yekambani yedu yakakwira-tembiricha-inodzivirira insulation zvinhu. Yakayedzwa kushingirira kumirisana nemagetsi akaomarara akadai semheni inokwira uye kushandura masurgery pasina dielectric breakdown. Nezvekupisa kwesimba, iyo coil inogona kumira kupisa kunoitwa neazvino kunyangwe panguva yenguva refu yakazara-mutoro wekushanda. Hupenyu hwesevhisi yehuputi hunoenderana nehupenyu hwese hwekushandura, huchidzivirira kubva mukukuvadzwa kwekupisa kana pakaitika dunhu pfupi.
Izvo zvinotsanangurwa mutafura chikamu chezvakatemwa zvechigadzirwa izvo zvinogona kugadzirwa zvinoenderana nezvinodiwa nevatengi
| Conductor dhayamita × Nhamba yezvikamu |
Single copper conductor Volume tolerance range kumativi (mm) |
Stranded kunze dhayamita ±0.1mm |
Yakapedzwa dhayamita yekunze (mm) | Packing urefu (M/akisi) |
Muitisi Resistance (20℃) (Ω/km) |
|
| Hukobvu(mm) (MAX) |
Upamhi (mm) (MAX) |
|||||
| 0.06×2000 | ±0.003 | 3.88 | 2.4 | 4.5 | 500 | 3.611 |
| 0.06×2000 | ±0.003 | 4.07 | 2.7 | 4.2 | 500 | 3.283 |
| 0.07×1200 | ±0.003 | 3.4 | 2.0 | 4.5 | 500 | 4.422 |
| 0.07×2000 | ±0.003 | 4.4 | 2.4 | 5.8 | 500 | 2.653 |
| 0.07×2200 | ±0.003 | 4.61 | 2.7 | 5.5 | 500 | 2.412 |
| 0.10 × 200 | ±0.003 | 1.72 | 2.2 | 1.5 | 800 | 13.001 |
| 0.10 × 400 | ±0.003 | 2.66 | 1.7 | 3.1 | 300 | 6.5 |
